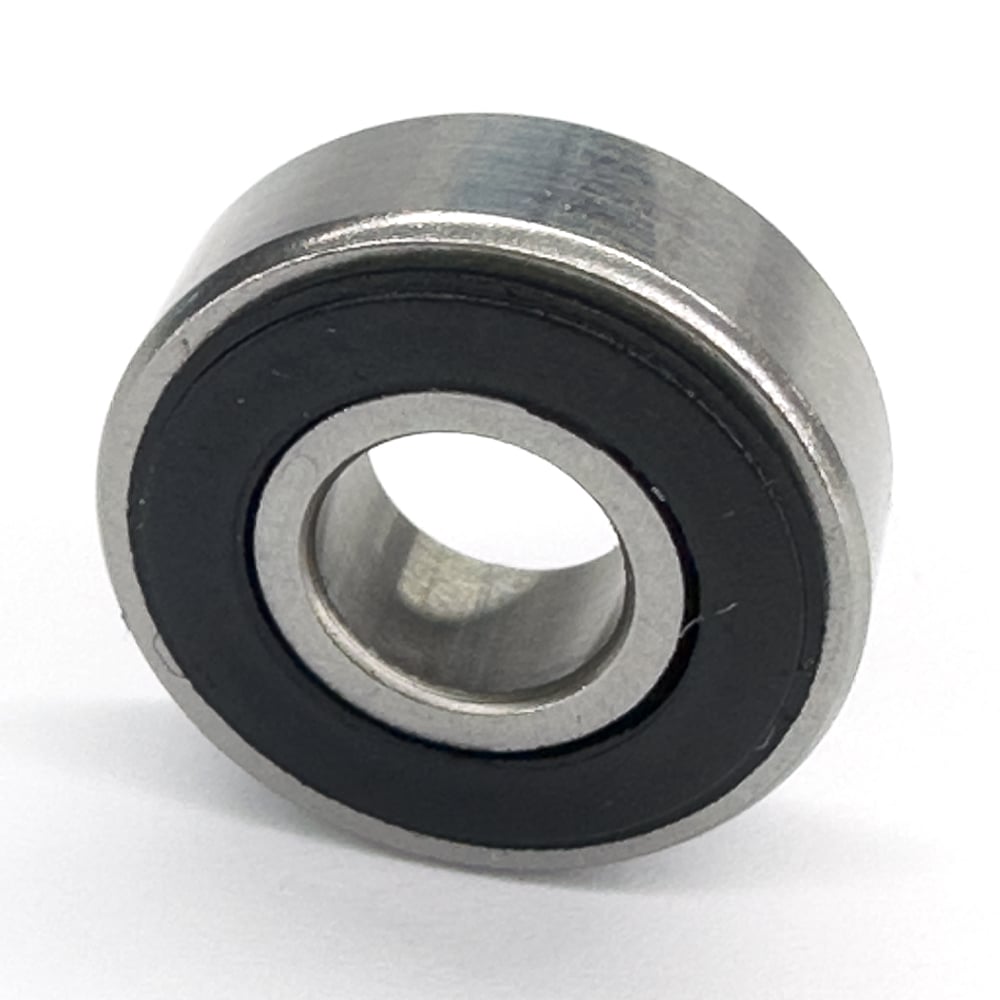

602 2rs

602 2rs

Regular price $1.95 USD
Regular price Sale price $1.95 USD
Sale Sold out
Shipping calculated at checkout.
Minimum Purchase & Free Shipping Amount:US$50
. . . View full details
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Inner Ring Type Standard
Seal Type Sealed
Bore Dia 2 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 7 mm
Outer Dia Tolerance -0.008mm to 0
Width 3.5 mm
Width Tolerance -0.12mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material 300 Series Stainless Steel
Shield Material Nitrile Rubber
Dynamic Radial Load 74 lbf
Static Radial Load 23 lbf
Max Speed (X1000 rpm) 60
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC1 (Available in ABEC3/5/7)
Radial Clearance Trade No. MC3 (Available in MC1/2/4/5/6)
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
REACH Compliant
Ball Dia 1.2000 mm
Ball Qty 7
Weight 0.6 g
